KOOKER TECHNOLOGIES

   Kooker Technologies (KT) is a privately owned small business that designs and manufactures custom hybrid microcircuits. We also provide a wide variety of microelectronic services that are rare, everything from dynamic piezo sensor or crystal design to rad hard ASIC’s, often with creative assembly/process techniques.

  KT is registered with the Supplier Award management Systems for easy government award of contracts and verification of common terms and conditions. Our DUN’s number is 194217944, CAGE code 7JYY3.

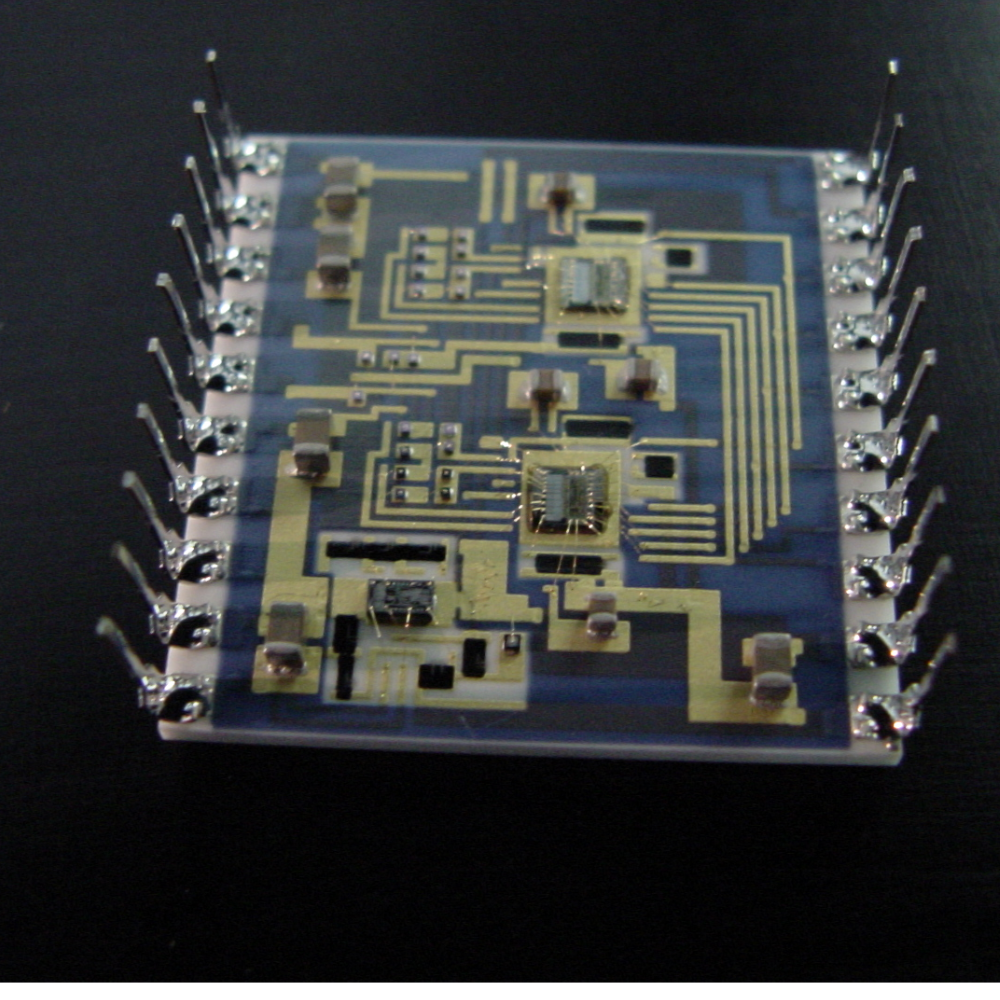

  The circuit displayed is a good example of a typical project. The application was for military test equipment with demanding requirements for power dissipation and small size. The module was fabricated using a BeO substrate, inexpensive edge-clip leads with high temp solder, direct Gold-Silicon eutectic attach of bare backed custom ASIC die to DuPont gold, mounted in a dead-bug configuration to allow a rear heatsink, providing less than a .1 degree C rise per watt thermal impedance. These sold for less than $350.00 in thousand piece quantities - only the ASIC customer supplied.
